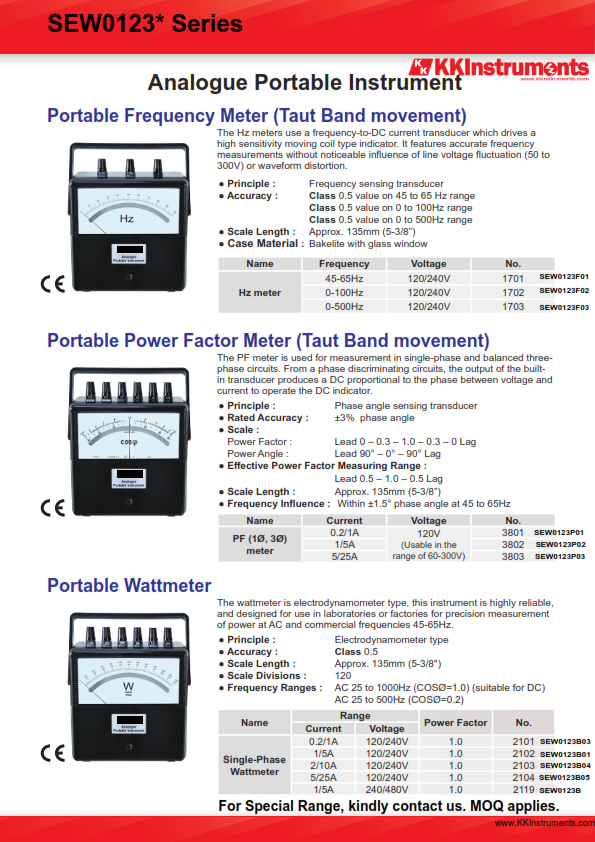

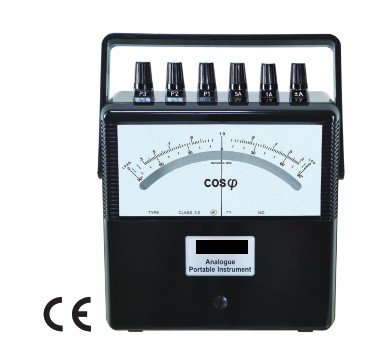

SEW0123P01-ST2000 3801--0.2/1A 120V POWER FACTOR METER Portable Power Factor Meter (Taut Band movement)

Category: Panel meters

  • FEATURES

    • Principle : Phase angle sensing transducer
    • Meets CE
    • Rated Accuracy : ±3% phase angle
    • Scale :
      Power Factor：Lead 0 – 0.3 – 1.0 – 0.3 – 0 Lag
      Power Angle： Lead 90° – 0° – 90° Lag
    • Effective Power Factor Measuring Range :
      Lead 0.5 – 1.0 – 0.5 Lag
    • Scale Length : Approx. 135mm(5-3/8”)
    • Frequency Influence : Within ±1.5° phase angle at 45 to 65Hz
